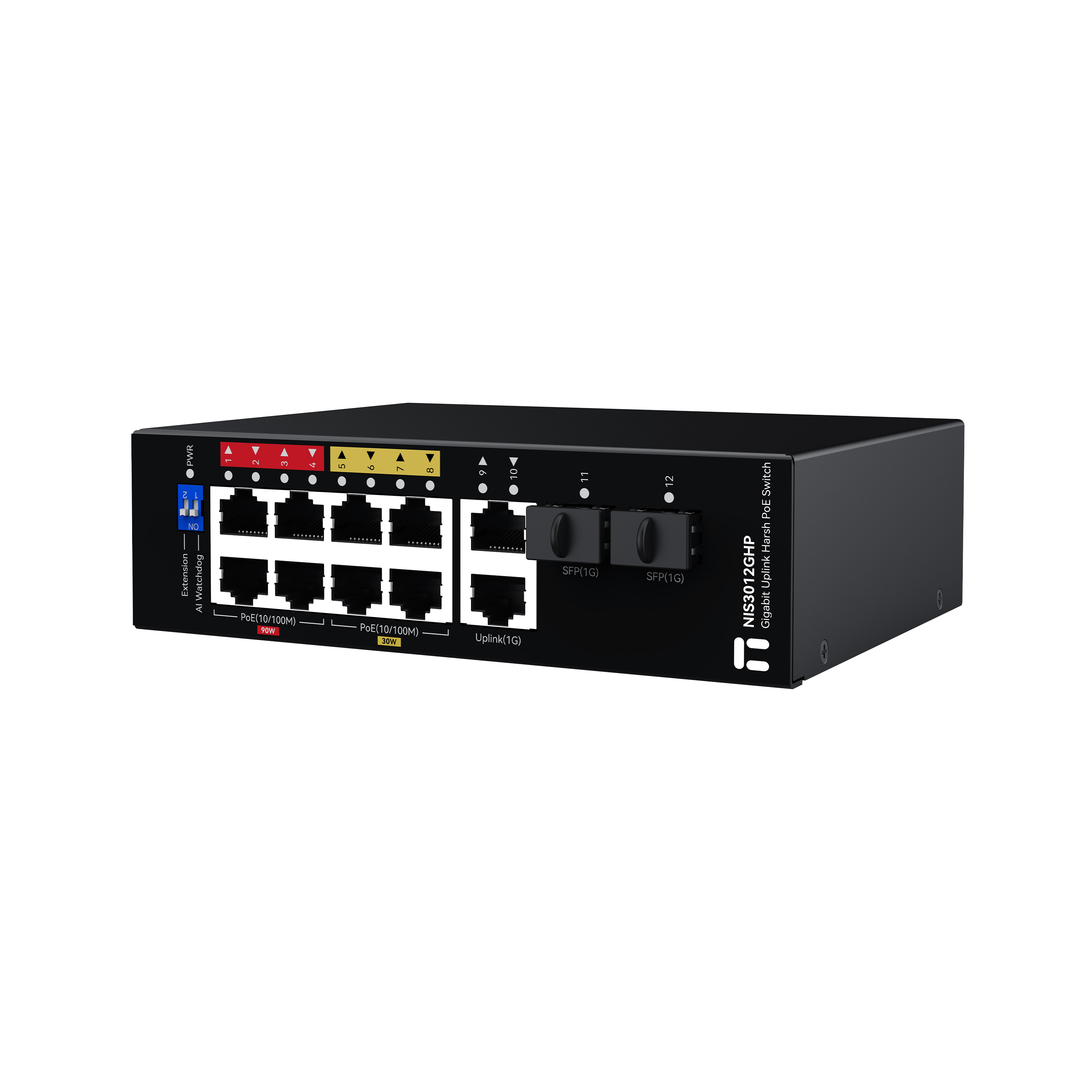

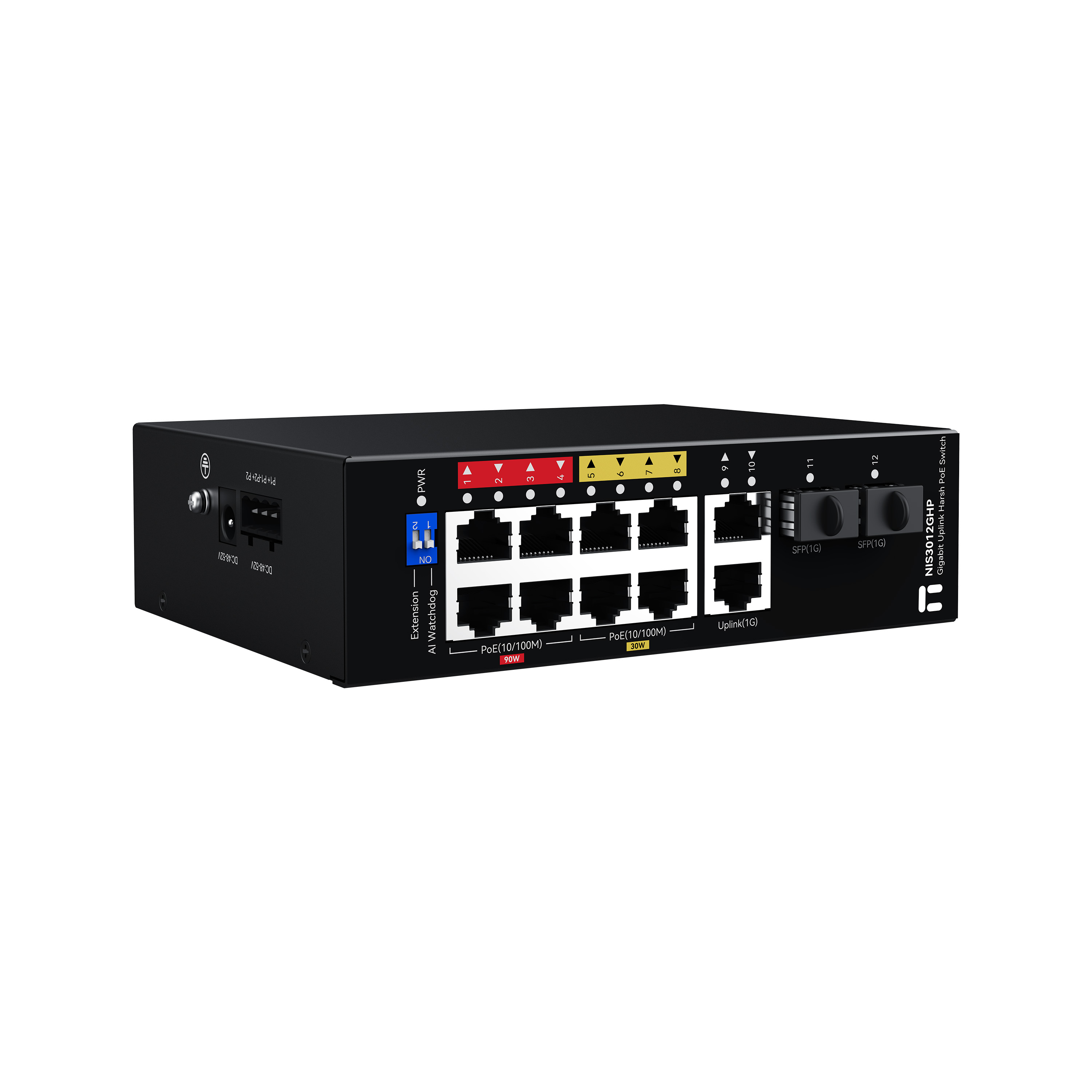

NIS3012GHP
Industrial Unmanaged Harsh PoE Switch
- IP40 Protection Class with Metal Housing;
- Wide Working Temperature Design: -30℃~70℃;
- Meet EMC industrial level 4 protection standard;
- IEEE 802.3af standard for PoE ports (Max 15.4W PoE output); IEEE 802.3at standard for PoE ports (Max 30W PoE output); IEEE 802.3bt standard for Hi-PoE ports (Max 90W PoE output);
- Equipped with a convenient DIP switch that can be easily switched between Extension mode and AI Watchdog mode.
8FE PoE+2GE Uplink+2SFP
Unmanaged Harsh PoE Switch
NIS3012GHP
Triple Redundant Power Inputs
-30℃~70℃
Level 4 EMC Protection
Extend to 250M
Gigabit Uplink Ports
AI Watchdog
High-Power PoE++
Plug and Play

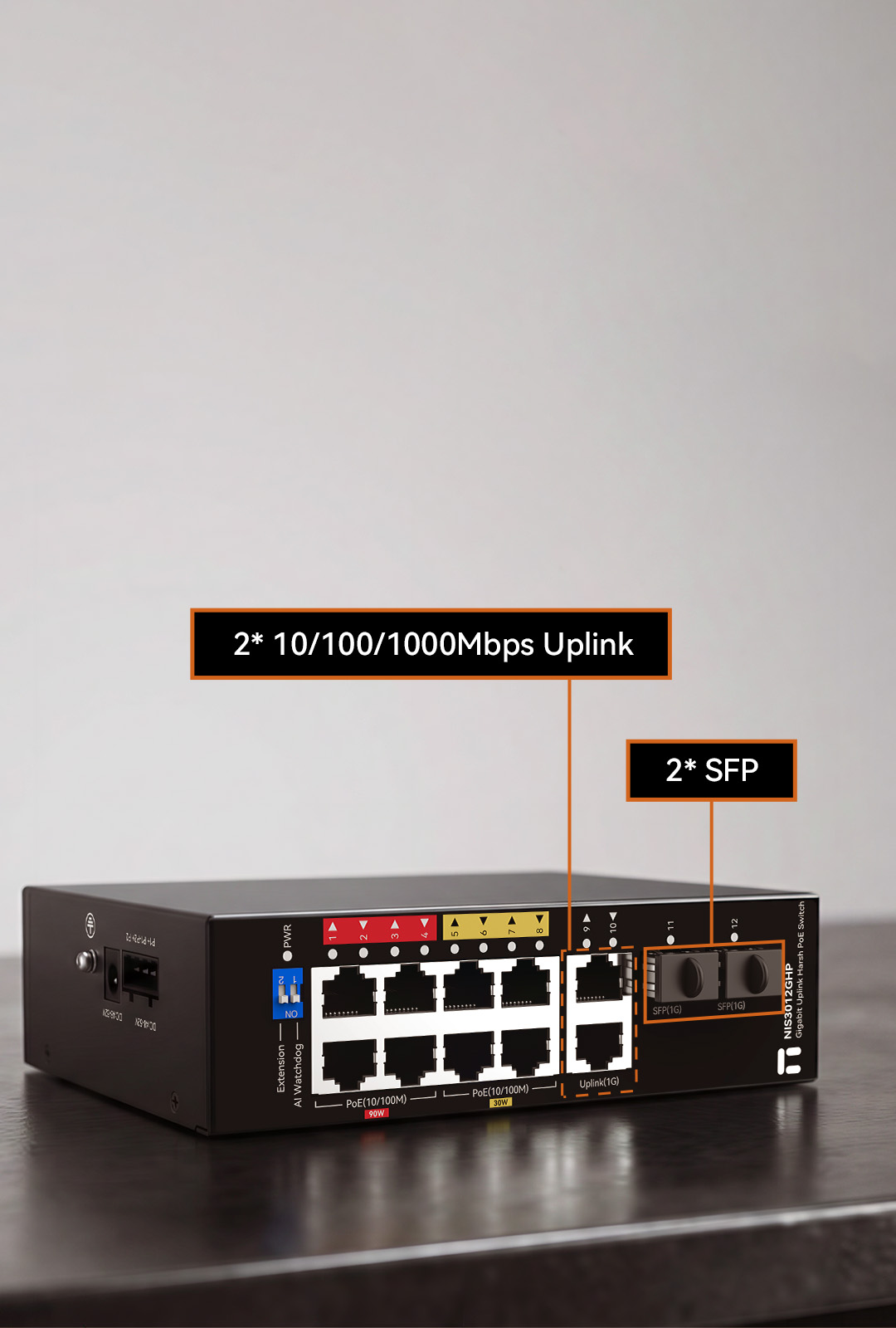

Flexible Network Deployment

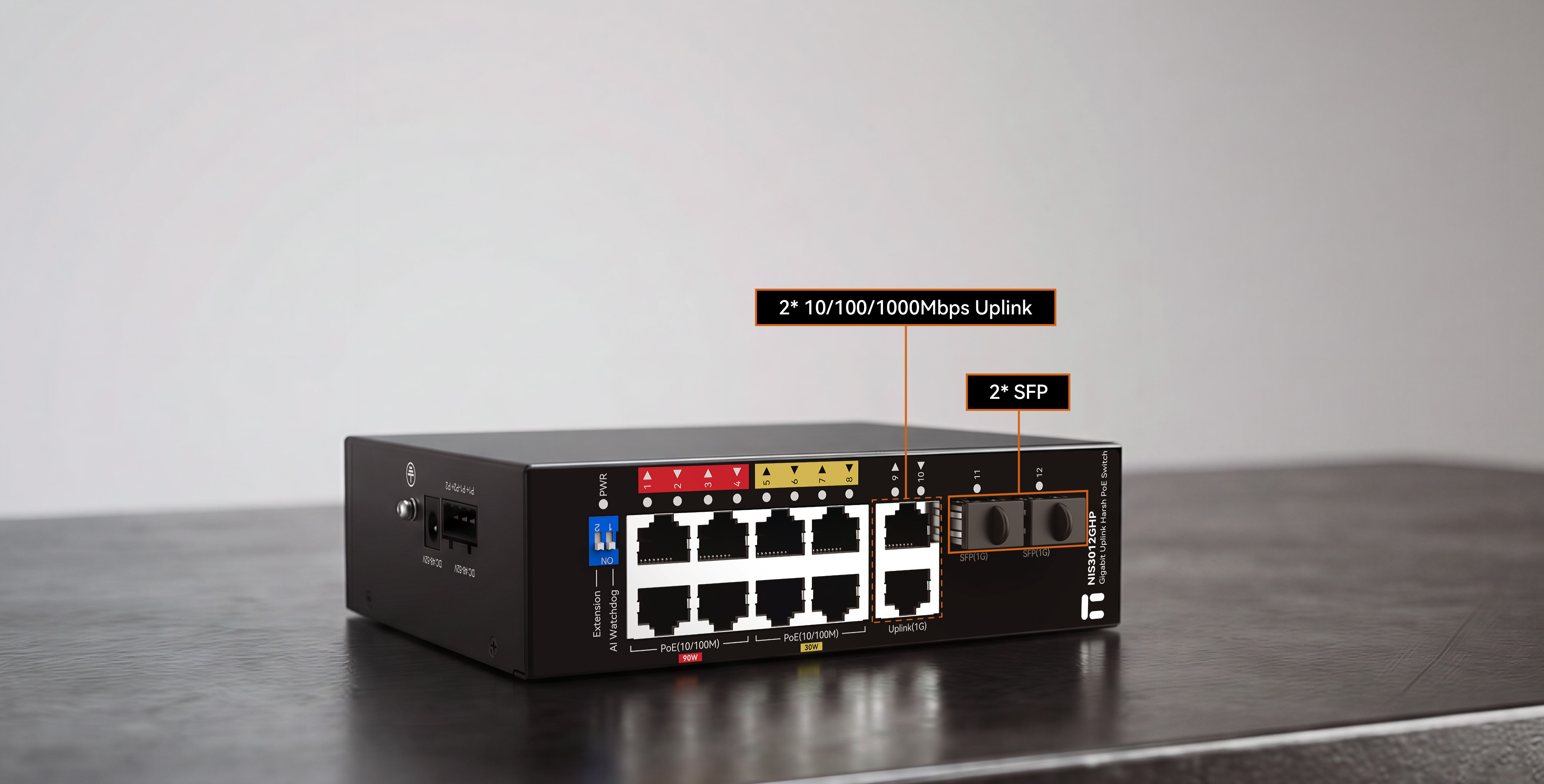

Equipped with 8* 10/100Mbps PoE+2* 10/100/1000Mbps uplink and 2* SFP ports, it fits perfectly for diverse scenarios like surveillance and office networking with flexible deployment.

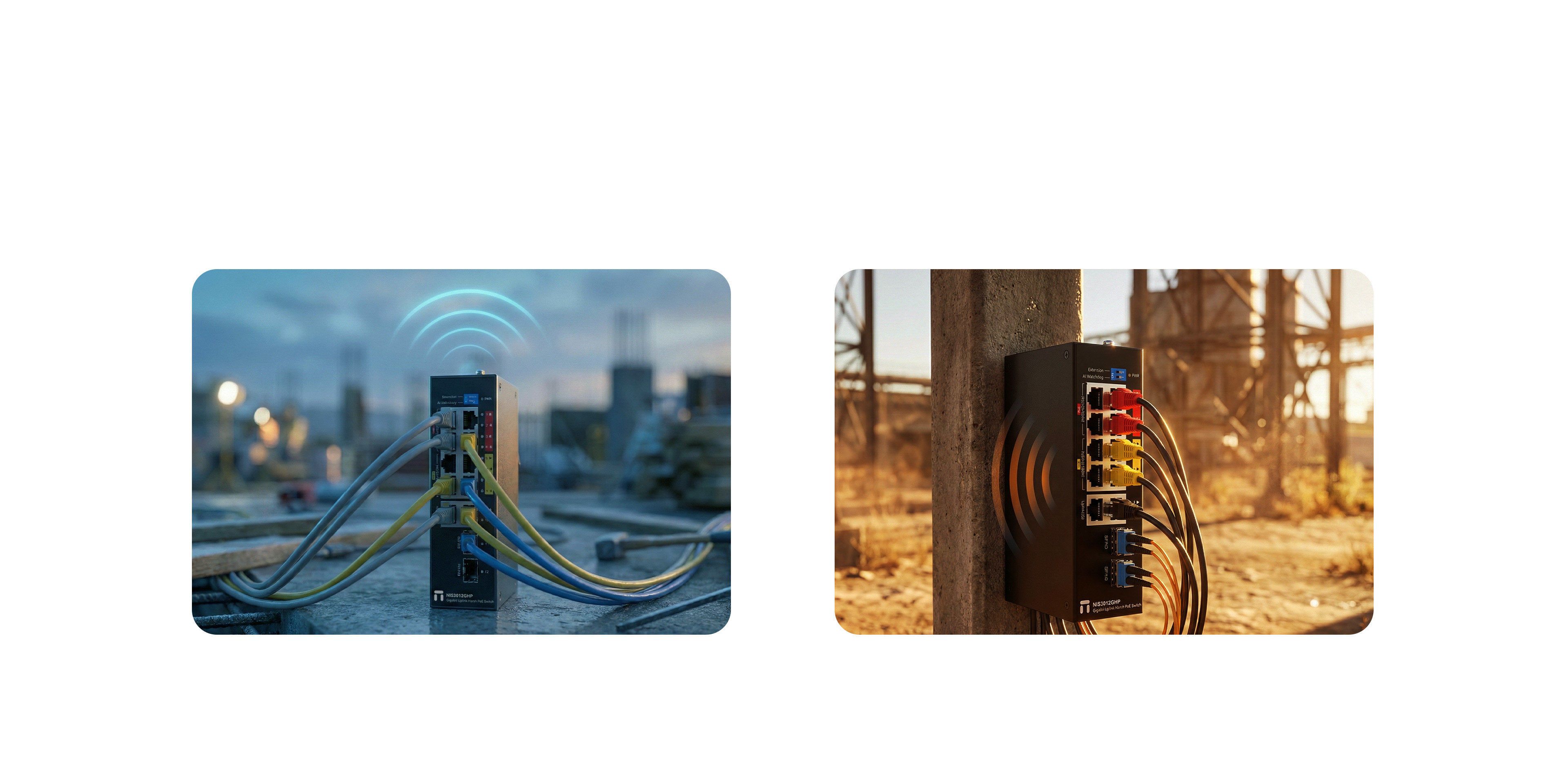

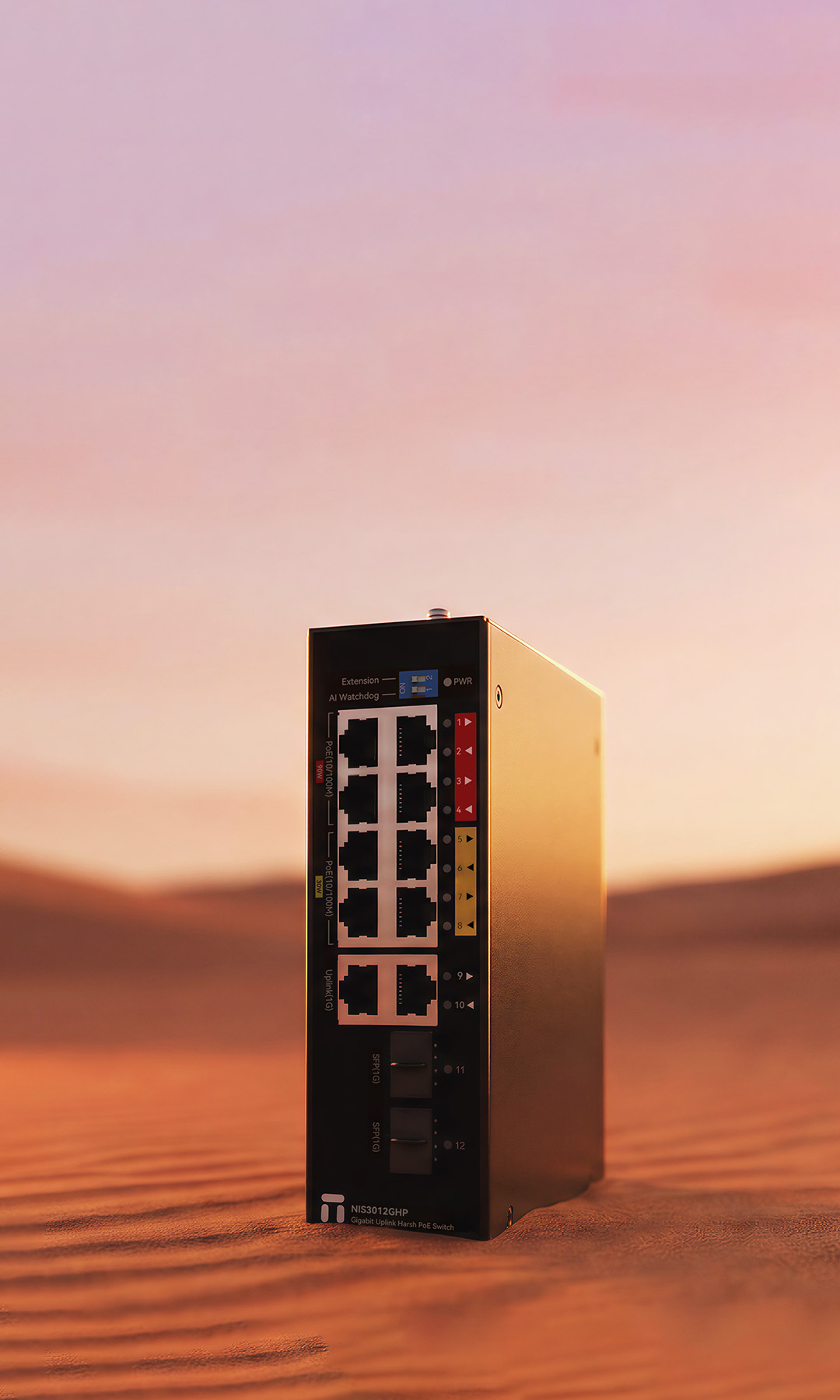

Industrial Wide-Temp Design
Boasts a wide operating temperature range of -30°C to 70°C, delivering stable performance in tough factory and outdoor settings.

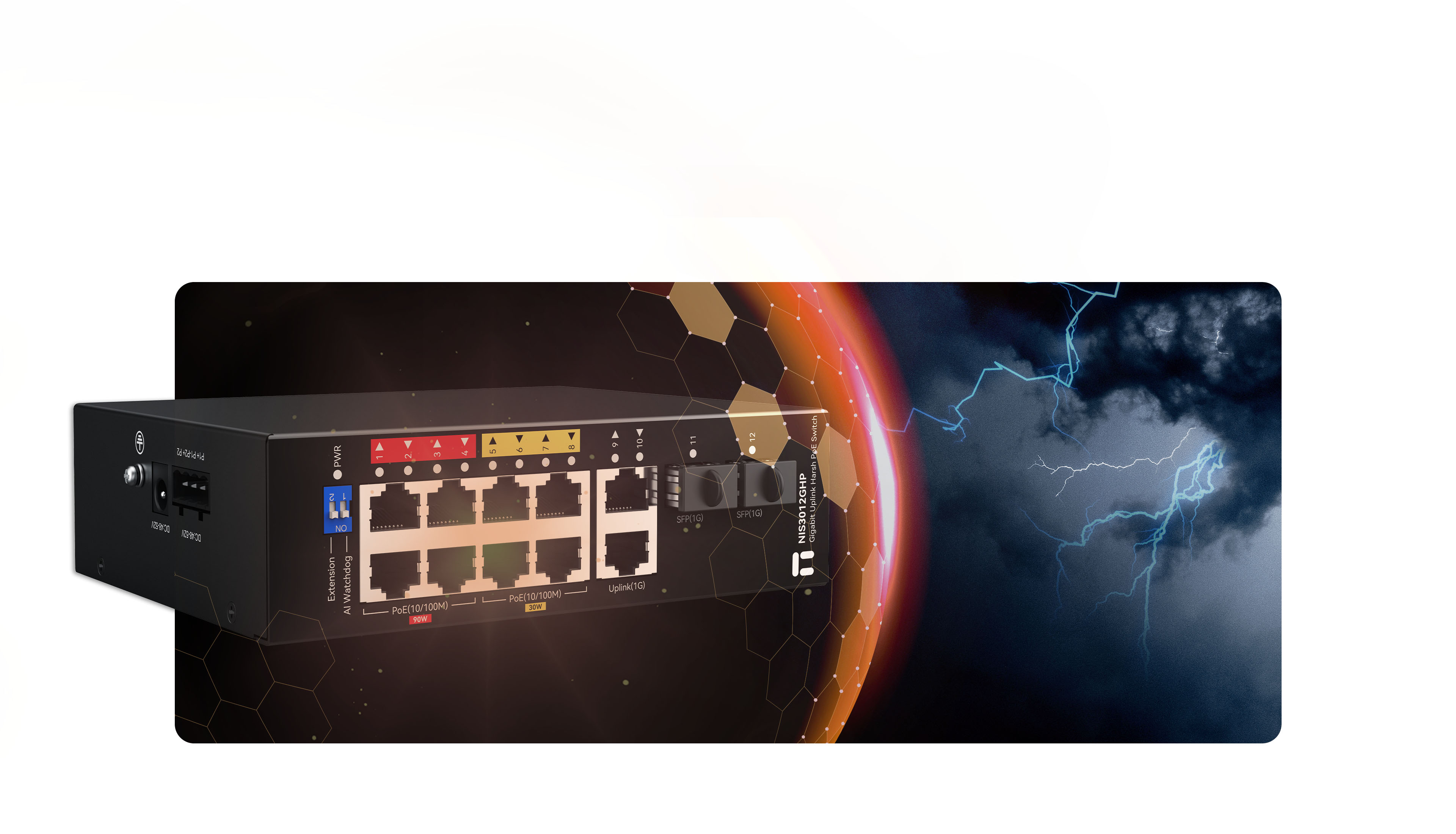

Multiple Protections
Ensure Safety without Worries
Built-in 4KV common-mode and differential-mode surge protection module can effectively resist lightning strikes and surges.
At the same time, it has overcurrent, overload and short-circuit protection functions.
At the same time, it has overcurrent, overload and short-circuit protection functions.

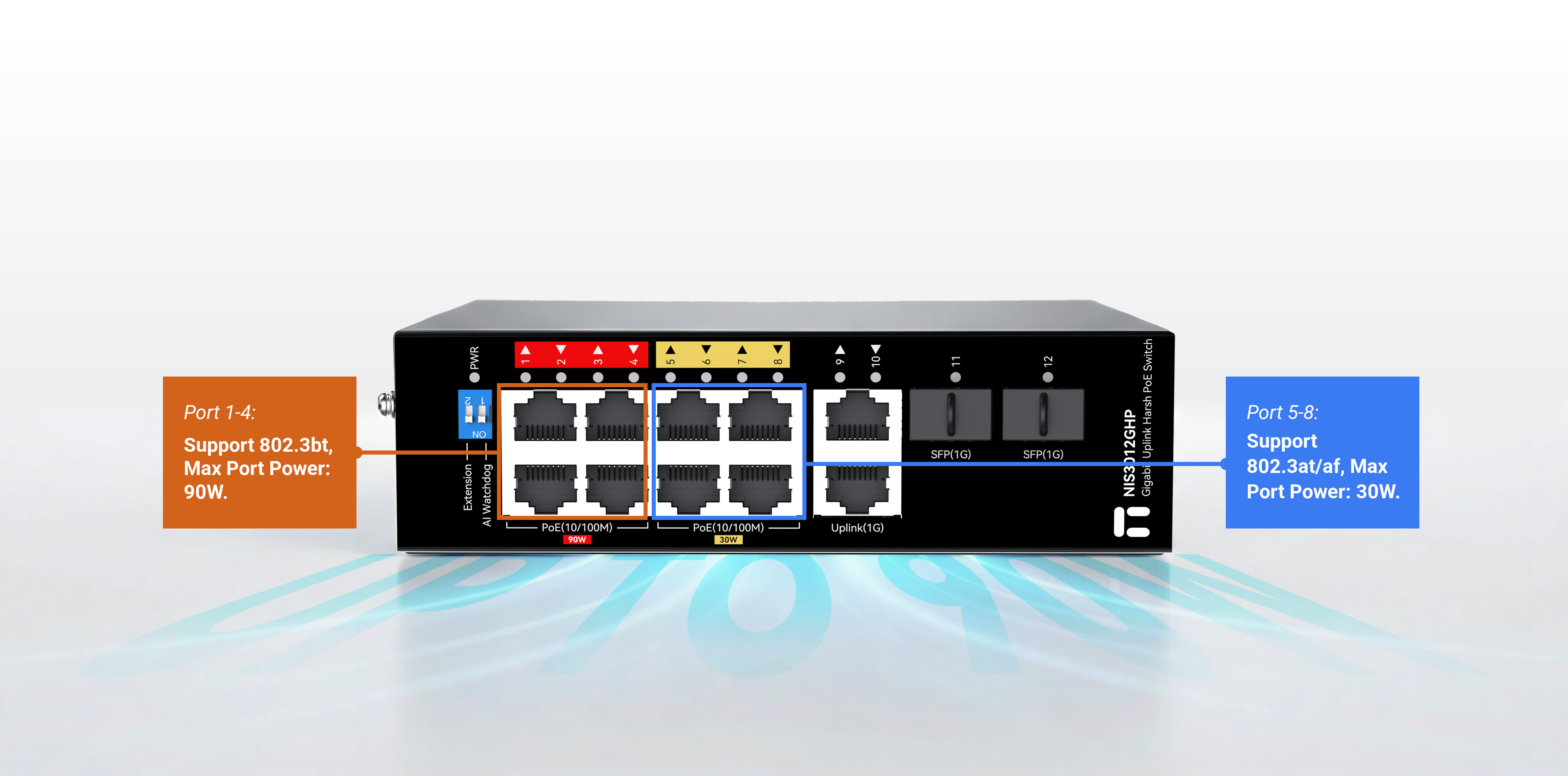

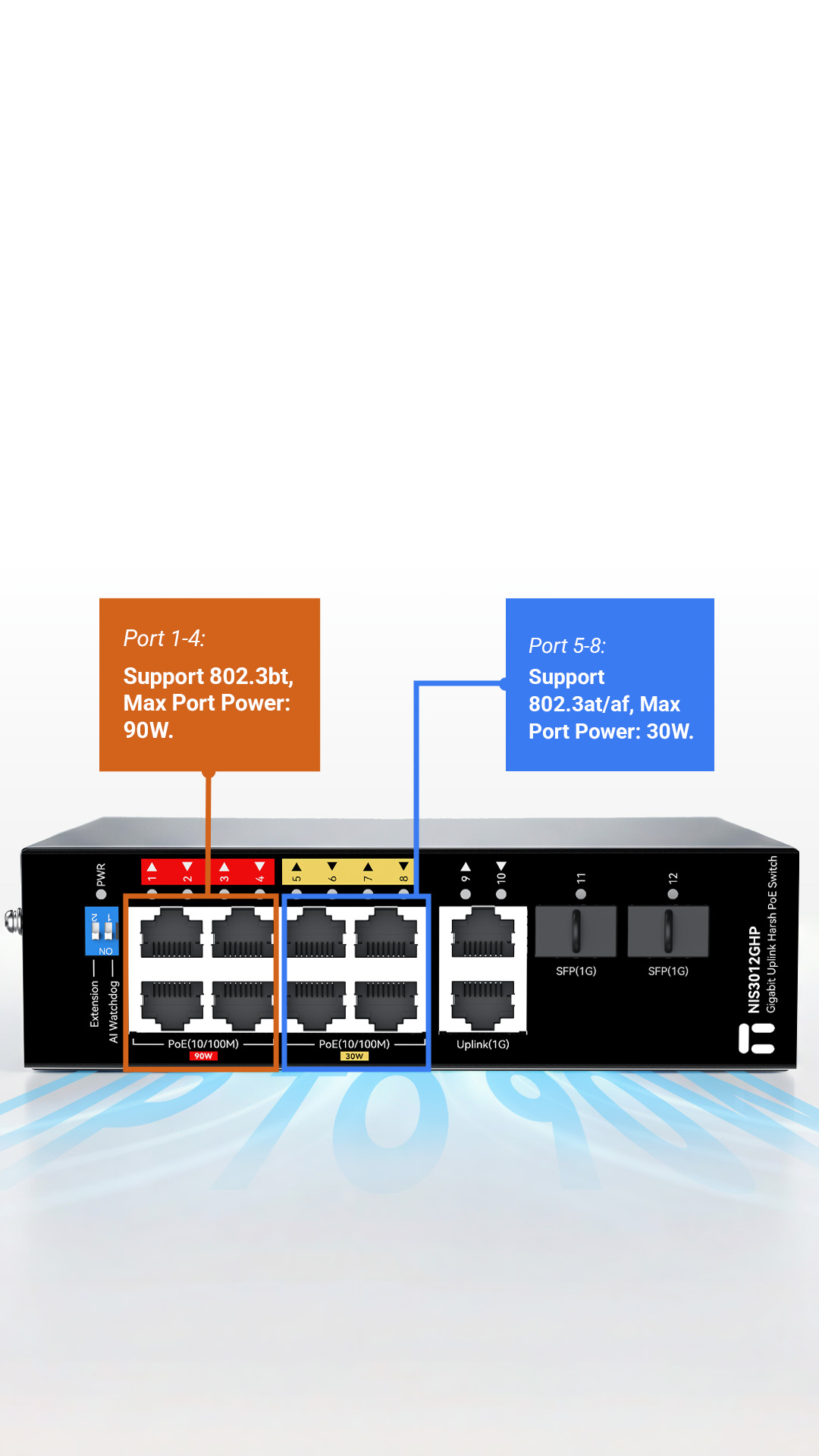

High-Power PoE++
Up to 90W per Port
Offers up to 90W power per port, with ports 1-4 compliant with IEEE 802.3bt.
Ideal for power-hungry devices such as PTZ cameras and high-performance APs.
Ideal for power-hungry devices such as PTZ cameras and high-performance APs.

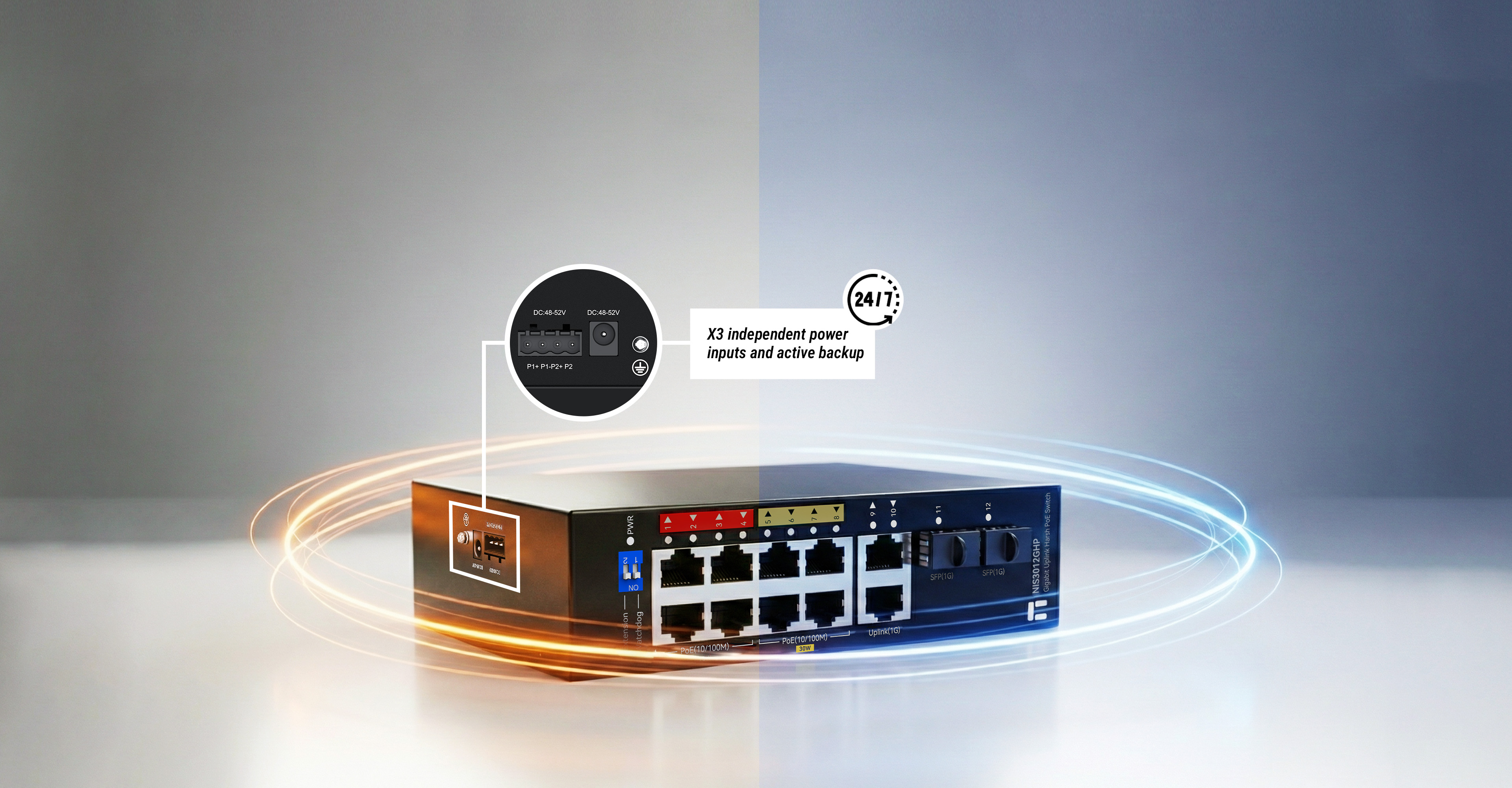

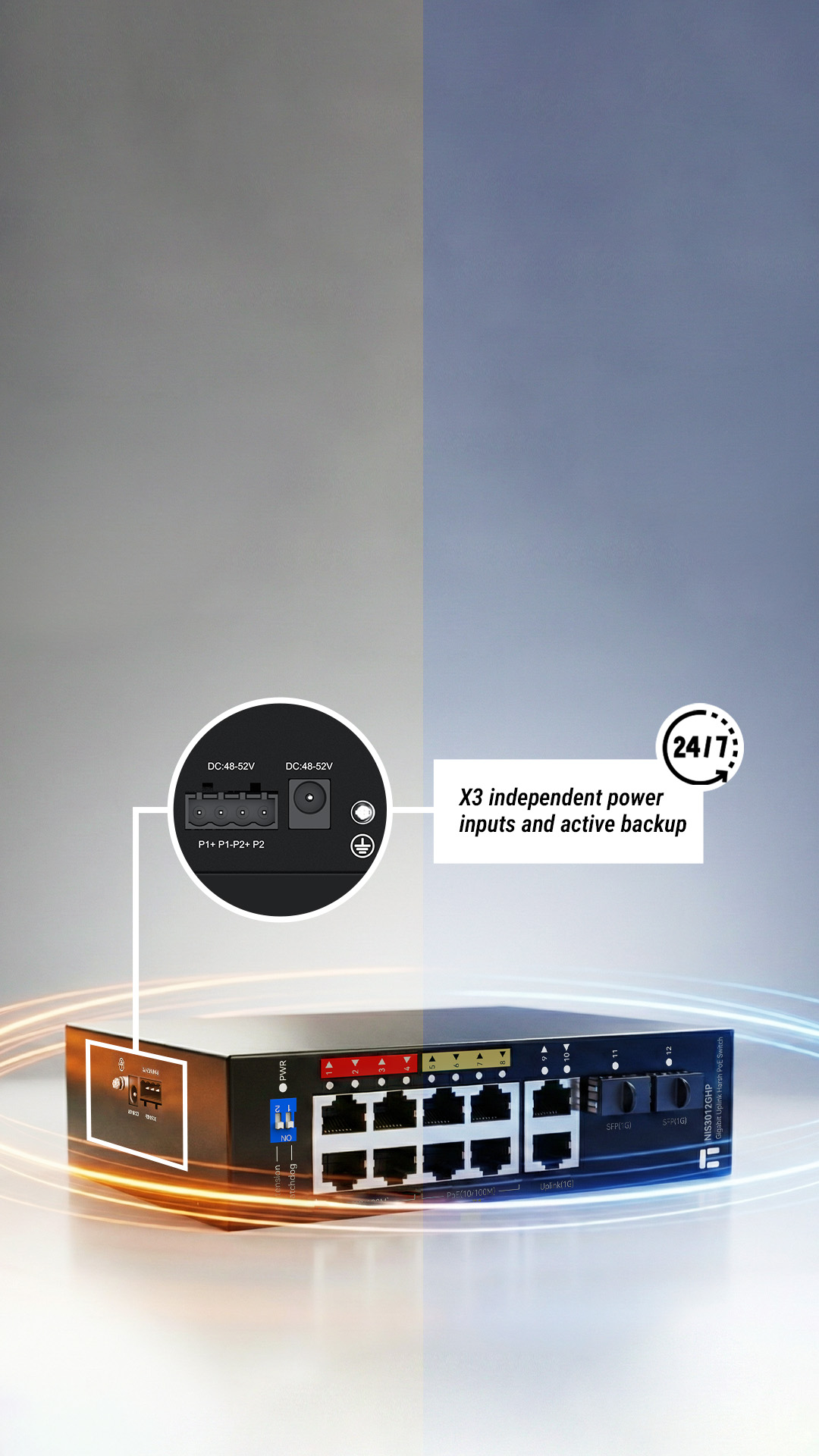

Triple Redundant Power Inputs
24/7 Uninterrupted Operation
Comes with three independent power inputs and active backup, guaranteeing round-the-clock continuous operation and top-tier reliability for mission-critical scenarios.

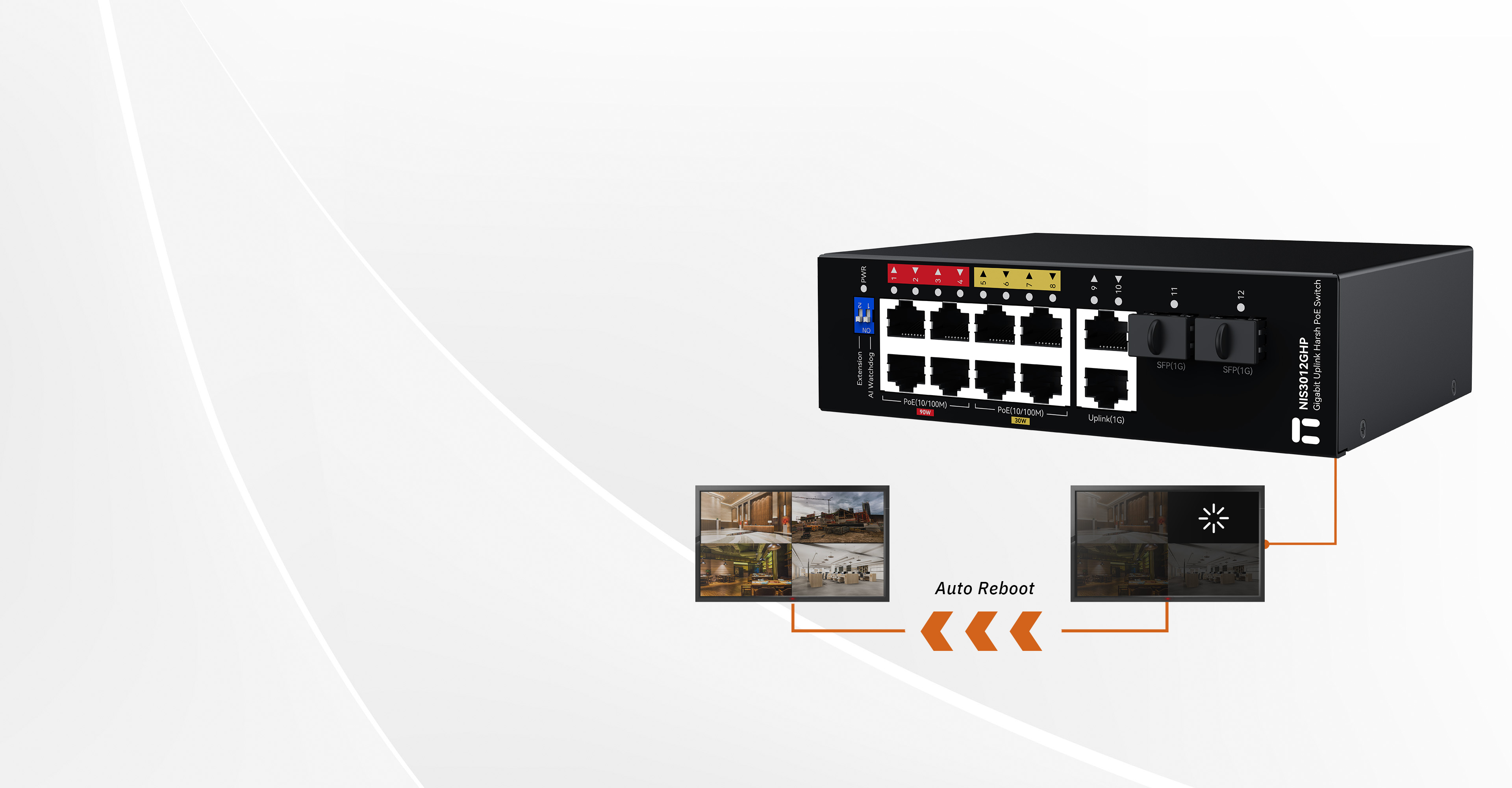

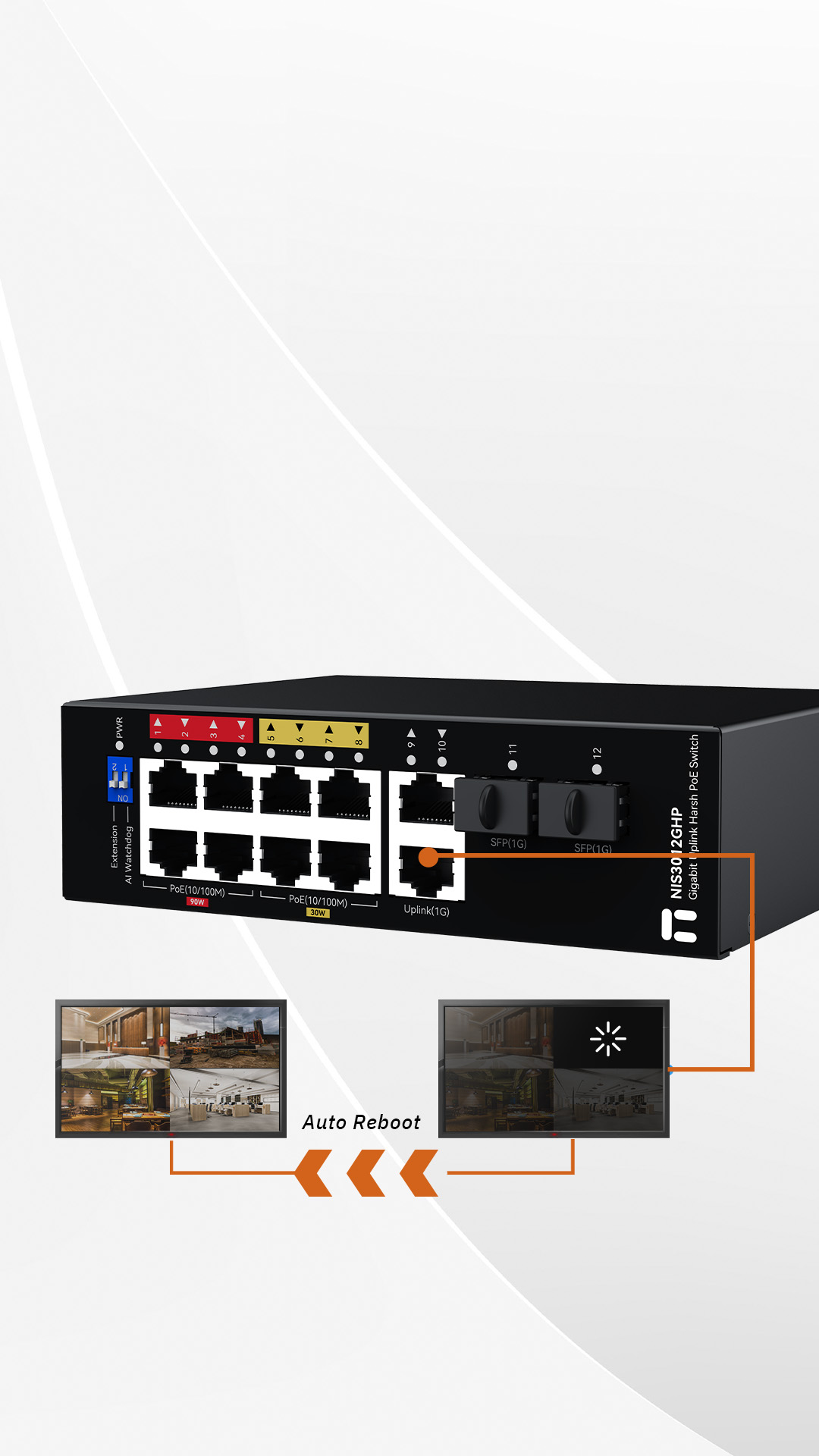

Smart AI Watchdog
Auto-Recovery from Failures
It ensures uninterrupted network stability by automatically detecting and recovering from system failures or connectivity disruptions in real-time.

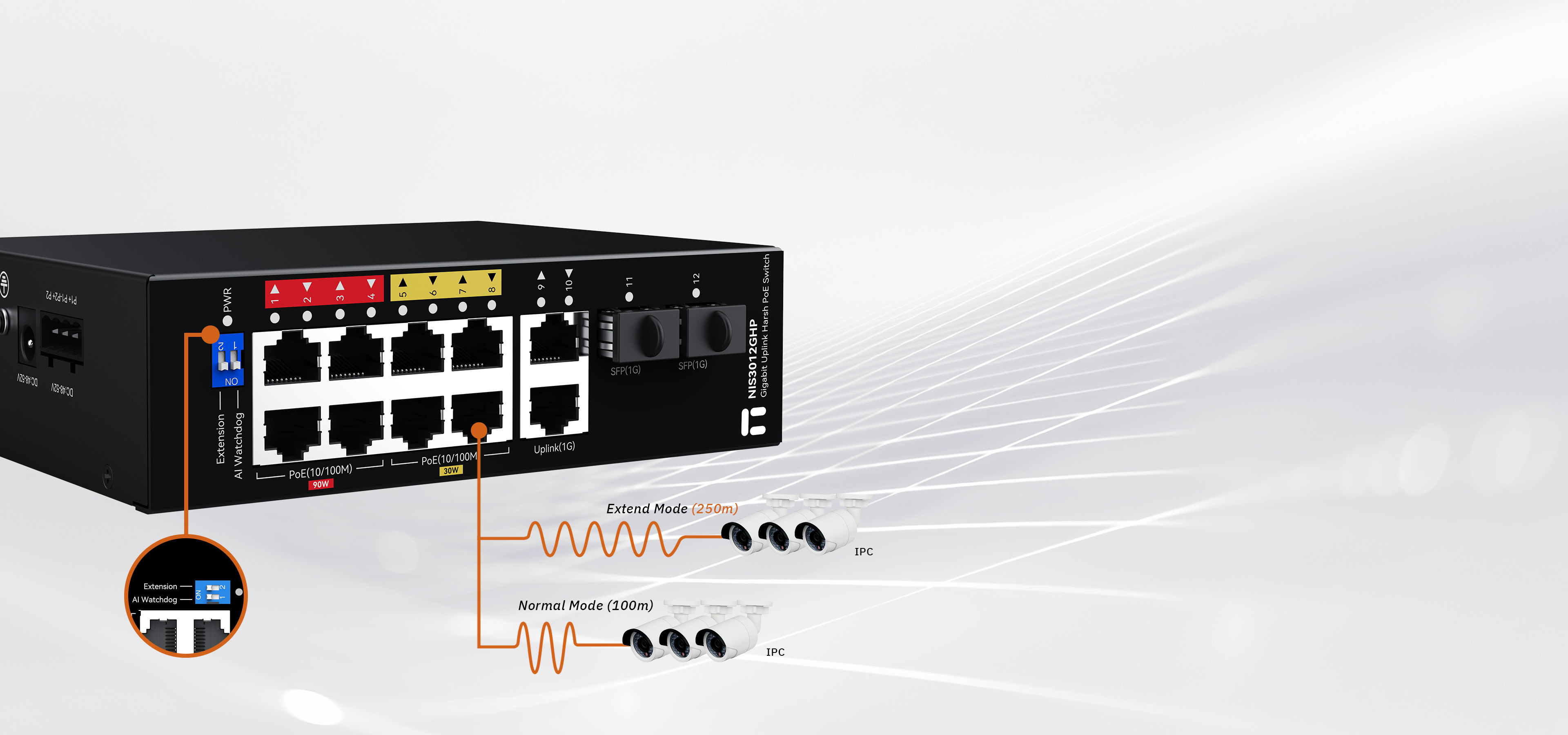

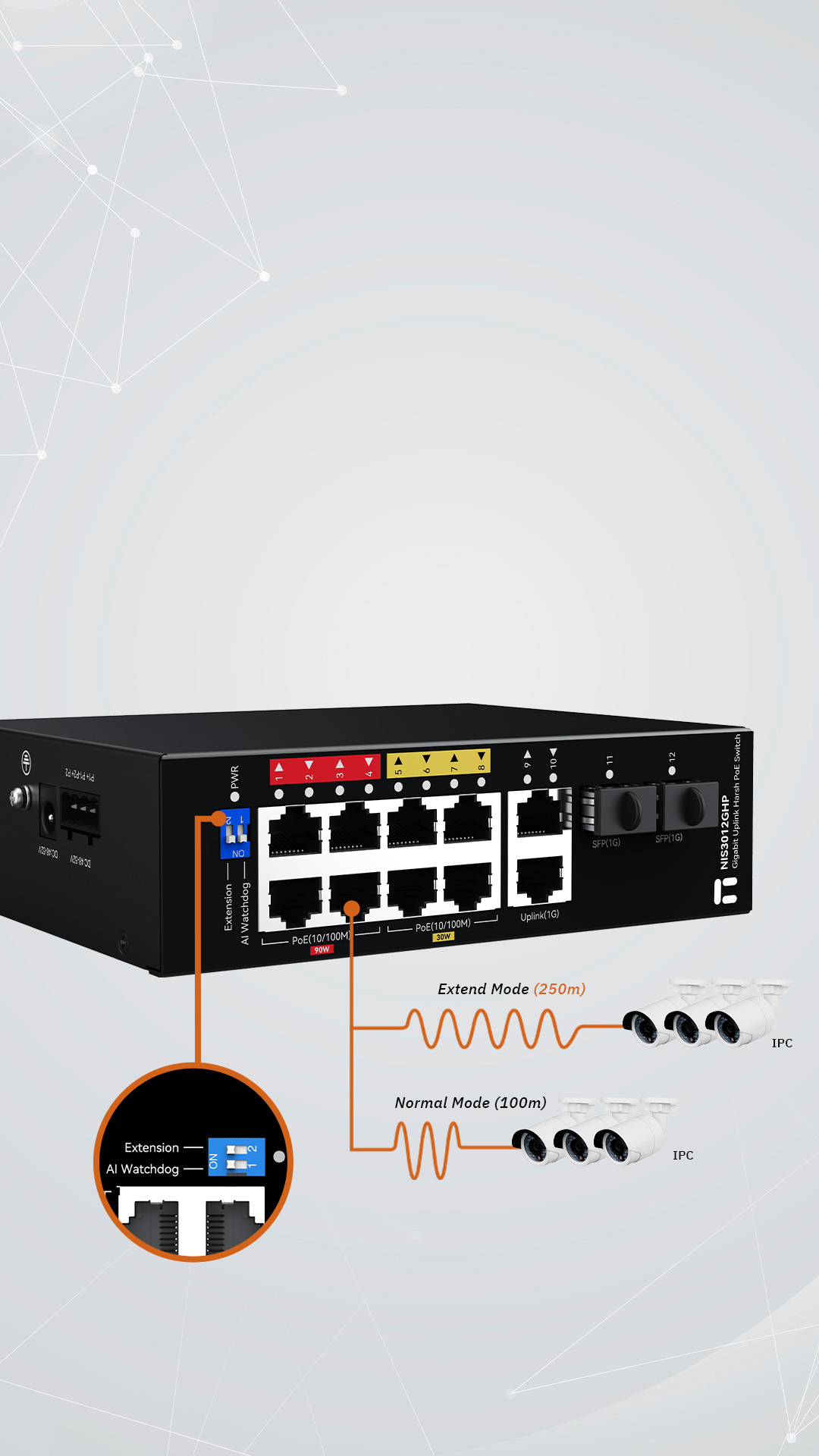

Extend to 250M
Unlocking More Possibilities
Extends 10Mbps transmission up to 250 meters. Solves long-distance cabling challenges in warehouses and campuses.
Application Scenarios
Specification
Lights
|
PWR On |
The switch is powered on. |
|
PWR Off |
The switch is powered off. |
|
Port Indicator On |
The corresponding port is connected to a network device but no activity |
|
Port Indicator Flashing |
Data is transmitting through the corresponding port. |
|
Port Indicator Off |
No device is connected to the corresponding port. |
Hardware
|
port composition |
Port 1-8: 10/100 Mbps PoE port Port 9-10: 10/100/1000Mbps RJ45 uplink port Port 11-12: 10/100/1000Mbps SFP uplink port |
|
Backplane bandwidth |
24Gbps |
|
MAC address table |
4K |
|
Subcontracting rate |
35.714Mpps |
|
Toggle delay |
<5us |
|
PoE port |
port 1-4 support 802.3bt, Max. Port Power 90W. port 5-8 support 802.3at/af, Max. Port Power 30W. |
|
Network medium and transmission distance |
1000Base-T: 4 pairs of Cat5e or higher UTP/STP (≤100m) 100Base-TX: 2-to-Cat5 (Cat5) or above UTP/STP (≤100m) 10Base-TX: 2 to Cat 5 (Cat6) or above UTP/STP (≤250m) |
|
Ethernet protocols and standards |
|
|
Data transfer rate |
|

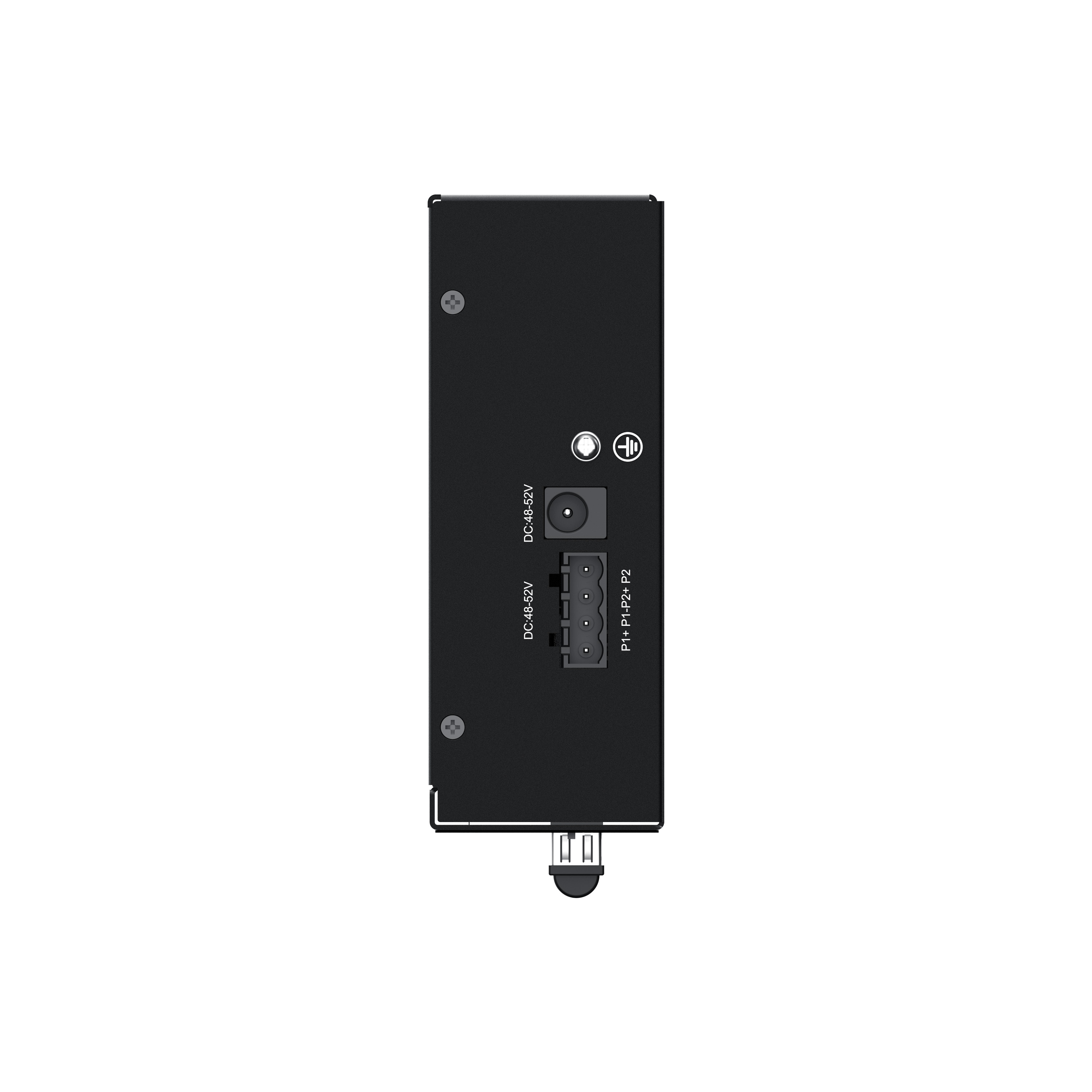

Power supply
|
Power Specifications |
|
|
Power terminals |
|
|
Overload protection |
|
|
Reverse polarity protection |
|
|
Redundant protection |
|
Environmental requirements
|
temperature |
|
|
humidity |
|
|
elevation |
Operating: Up to 6500 ft (2000 m) Storage: Up to 6500 ft (2000 m) |
EMI
| FCC CFR47 Part 15, EN55022/CISPR22, Class B |
EMC
|
IEC61000-4-2 (ESD): ±8kV (contact), ±15kV (air) |
|
IEC61000-4-3 (RS): 10V/m (80MHz-2GHz) |
|
IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV |
|
IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV |
|
IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) |
|
IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
Mechanical standards
|
IEC60068-2-6 (Vibration) |
|
IEC60068-2-27 (Shock) |
|
IEC60068-2-32 (Free Fall) |

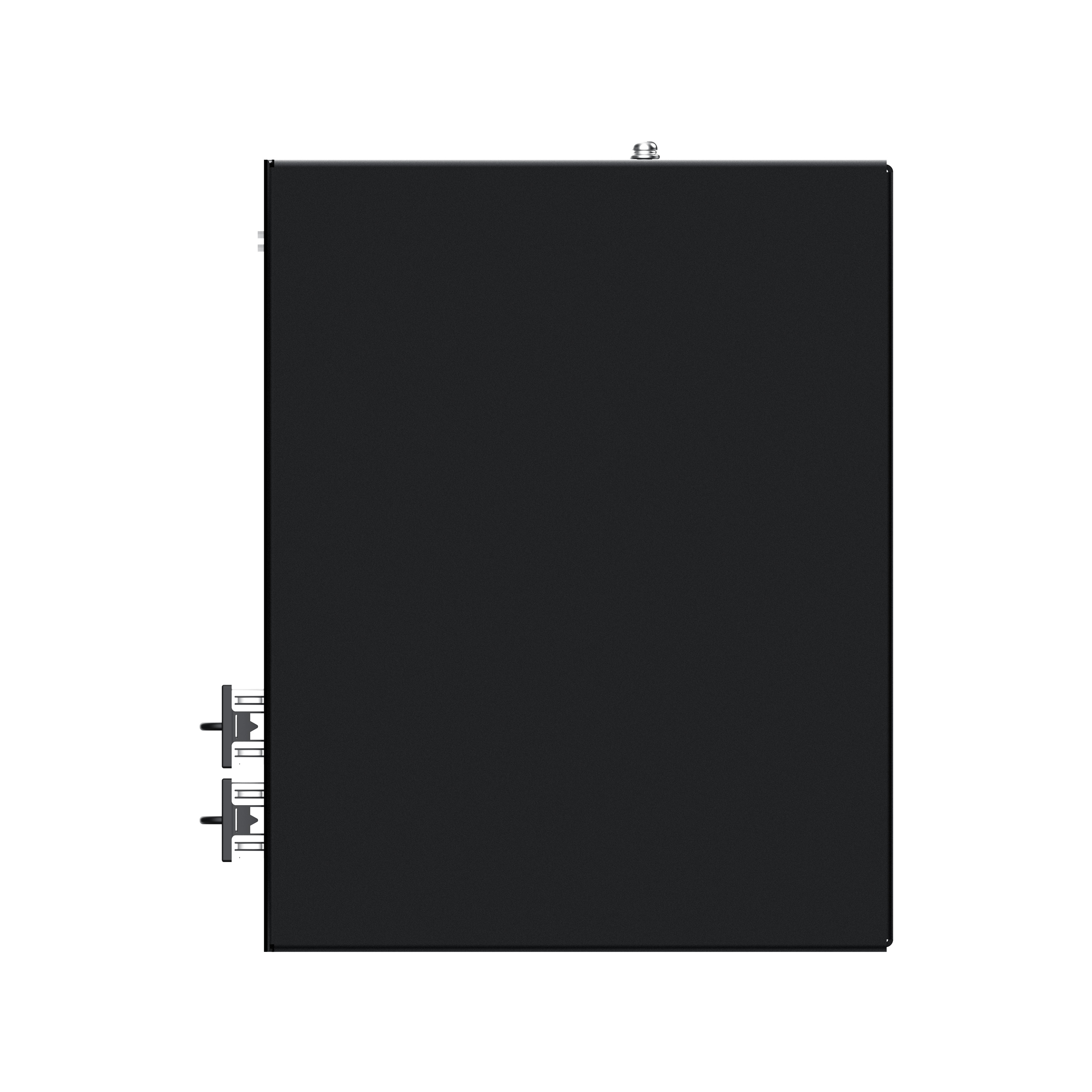

Dimensions
|
Bare metal |
44.5mm x 150mm x 118mm(W×H×D) |
Packing and shipping
|
Fill guard |
The switch is equipped with a pearl cotton sleeve for three-dimensional protection |
|
Packing quantity |
10PCS(CARTON) |
|
Approvals |
CE, FCC, RoHS |
|
Environmental Limits |
Operating Temperature: -30 to 70°C Storage Temperature: -45 to 85°C Ambient Relative Humidity: 5 to 95% (non-condensing) |
|
MTBF |
360,000 hours |
|
Stacking limit |
In the state of complete packaging, the maximum limit is 4 layers |
|
Precautions |
The storage warehouse should be clean, ventilated, free of corrosive gases, flammable, explosive and other corrosive chemicals. Keep away from heat sources and strong mechanical vibrations. |
|
Storage period |
According to the above requirements, reasonable storage can last for one year, and it is recommended to re-inspect and use after 2 years |
|
other |
There should be a label on the packaging box to indicate the product model, code and quantity |
|
Mount |
DIN-Rail |
