P110GH
8 FE POE+2GE Uplink POE Switch
- Follow 802.3, 802.u Faster Ethernet, IEEE 802.3ab 1000BASE-T；
- POE IEEE 802.3af/at compliant Powered Device (PD)
- Supports two modes: Normal Mode/Extend+Watch Dog Mode
- Ports 1~8 features POE power supply capability and can be used as power over Ethernet devices；2*10/100/1000Base-T Uplink and 1*1000Base-X SFP.
- Support full duplex based on IEEE802.3x and half duplex based on Backpressure
- Auto MDI/MDIX crossover for all ports
- Non-blocking wire speed forwarding
- MAC address auto-learning & auto-aging
- Steel case, the total POE power budget of 120W
- Just Plug and Play
Specification
Hardware
|
Interface |

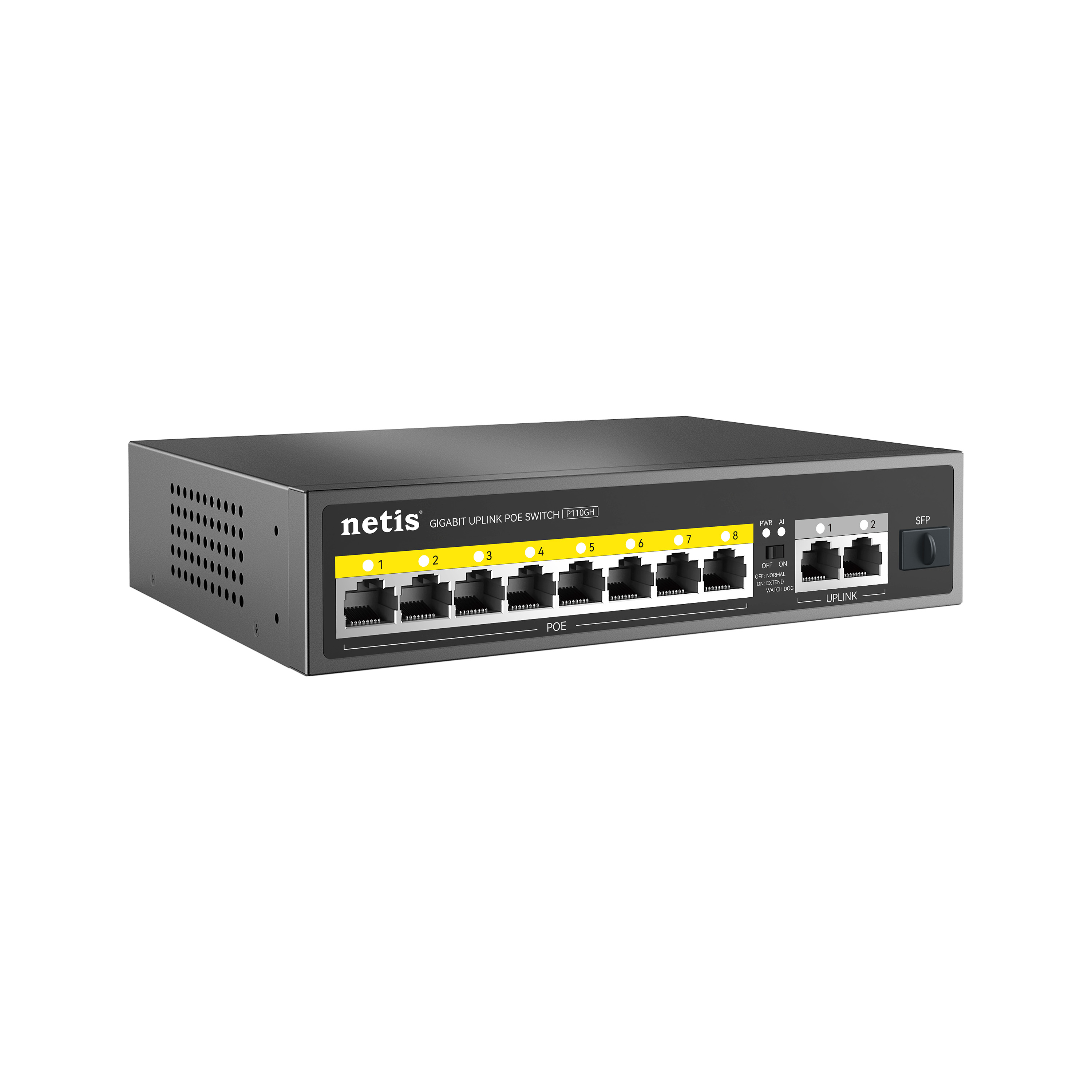

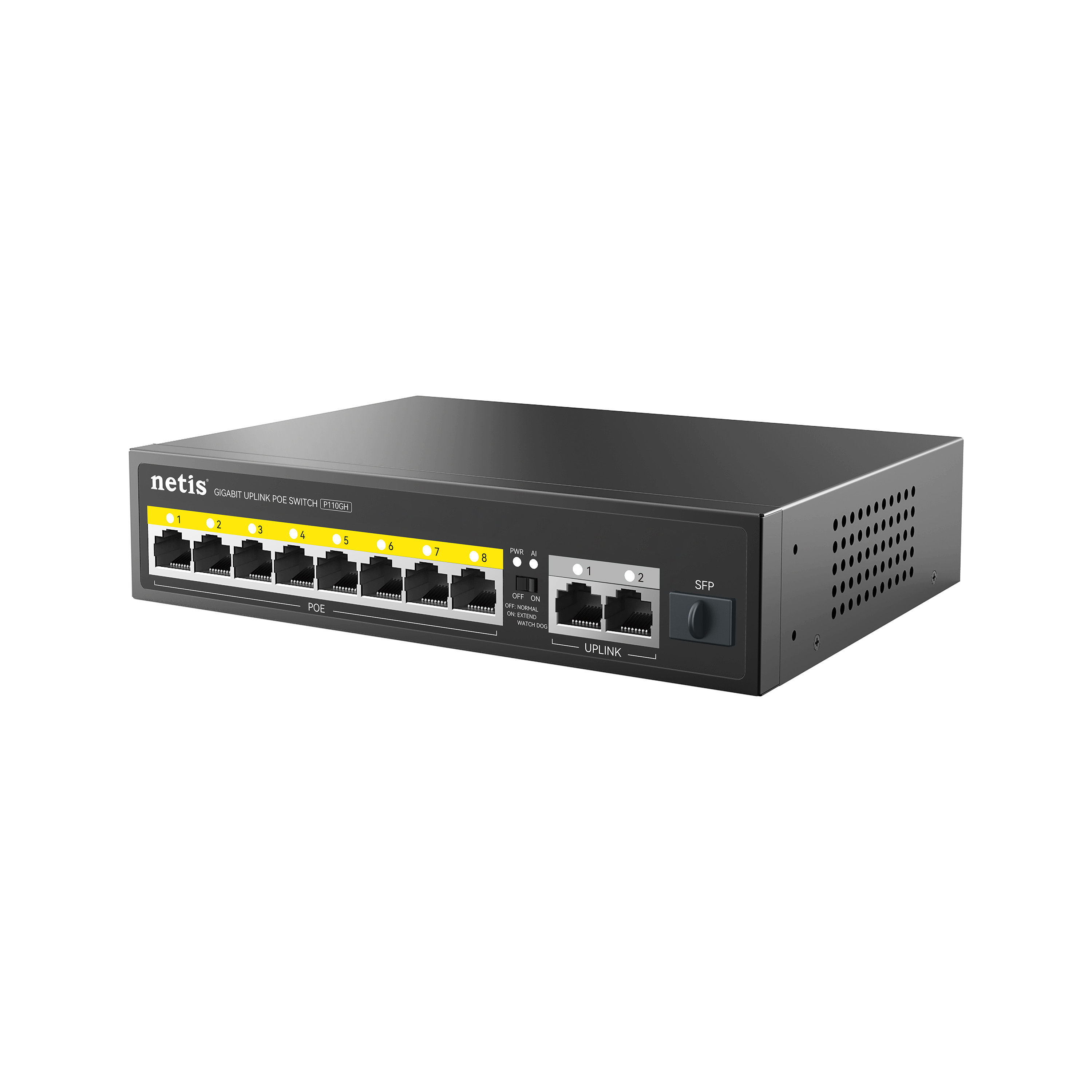

8 10/100M POE ports (Data /Power) 2 10/100/1000M uplink RJ45 ports (Data) 1 1000M uplink SFP slot port (Data) |
|
LED |
PWR: Lighting - The device is powered on normally AI: Lighting - The intelligent mode is enabled Port: Lighting - Port link is normal Blinking - Data in transit |
|
Mode |
Normal Mode Extend+Watch Dog Mode |
|
Store & Forwarding |
Yes |
|
MAC Address Table Size |
8K |
|
Jumbo Frame |
2048 byte |
|
Switching Capacity |
7.6G |
|
Power Input POE Standards |

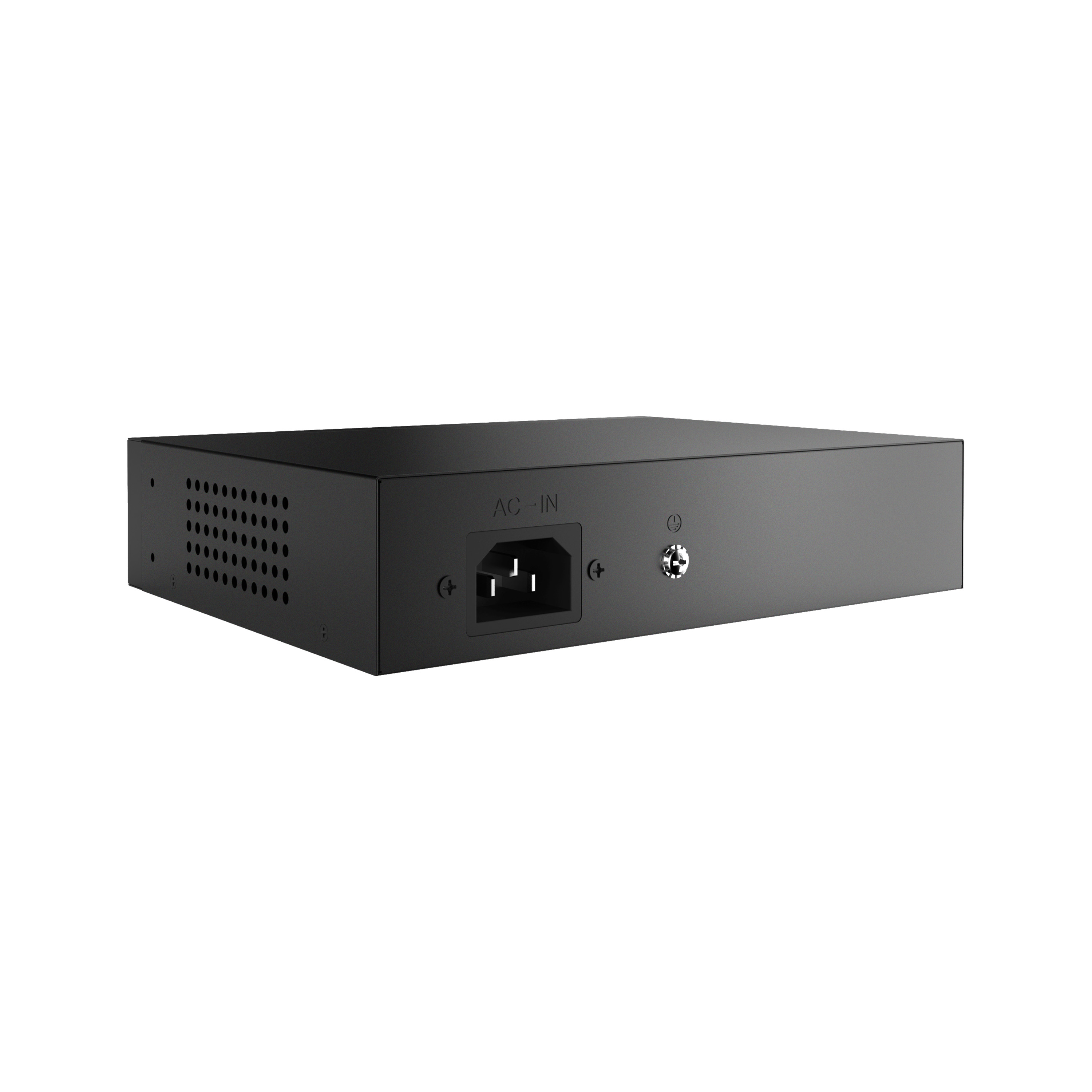

Single port maximum power 30W Whole switch maximum power 120W Support over-current, over-voltage and short-circuit protection Support Soft Start of High Power PD Support sequential boot-up Power Supply Pin:12+/36- AC 100~240V 50-60HZ |
Software
|
Basic function |
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol Support POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging Support AI+extend, intelligent troubleshooting, ultra-long cable extension |
|
Cabling type |
1000BASE-T : Cat5e or better UTP(≤100m) 100Base-TX: Cat 5e or better UTP/STP(≤100m) 10Base-TX: Cat 5e or better UTP/STP(≤250m) |
|
Standards |
IEEE 802.3 10BASE-T Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
|
Data Transfer Rate |
10Mbps(Half-duplex and Full-duplex) 100Mbps(Half-duplex and Full-duplex) 1000Mbps(Full-duplex) |
Others
|
Environment |
Operation Temperature：0℃～40℃ Storage Temperature：-40℃～70℃ Operation Humidity：10%～90% RH Non-condensing Storage Humidity：5%～90% RH Non-condensing |
|
Dimensions |
190*140*43mm(L*W*H) |
