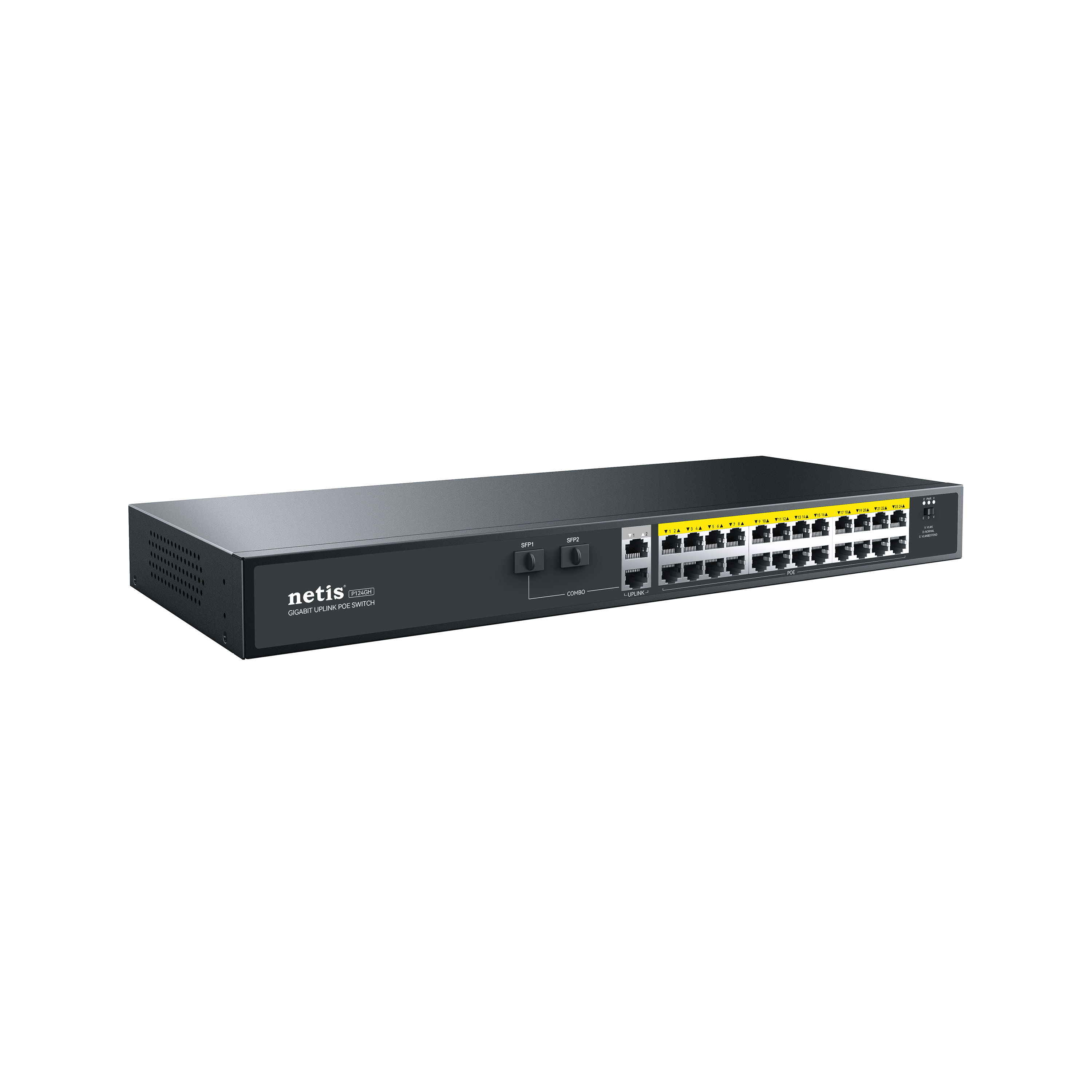

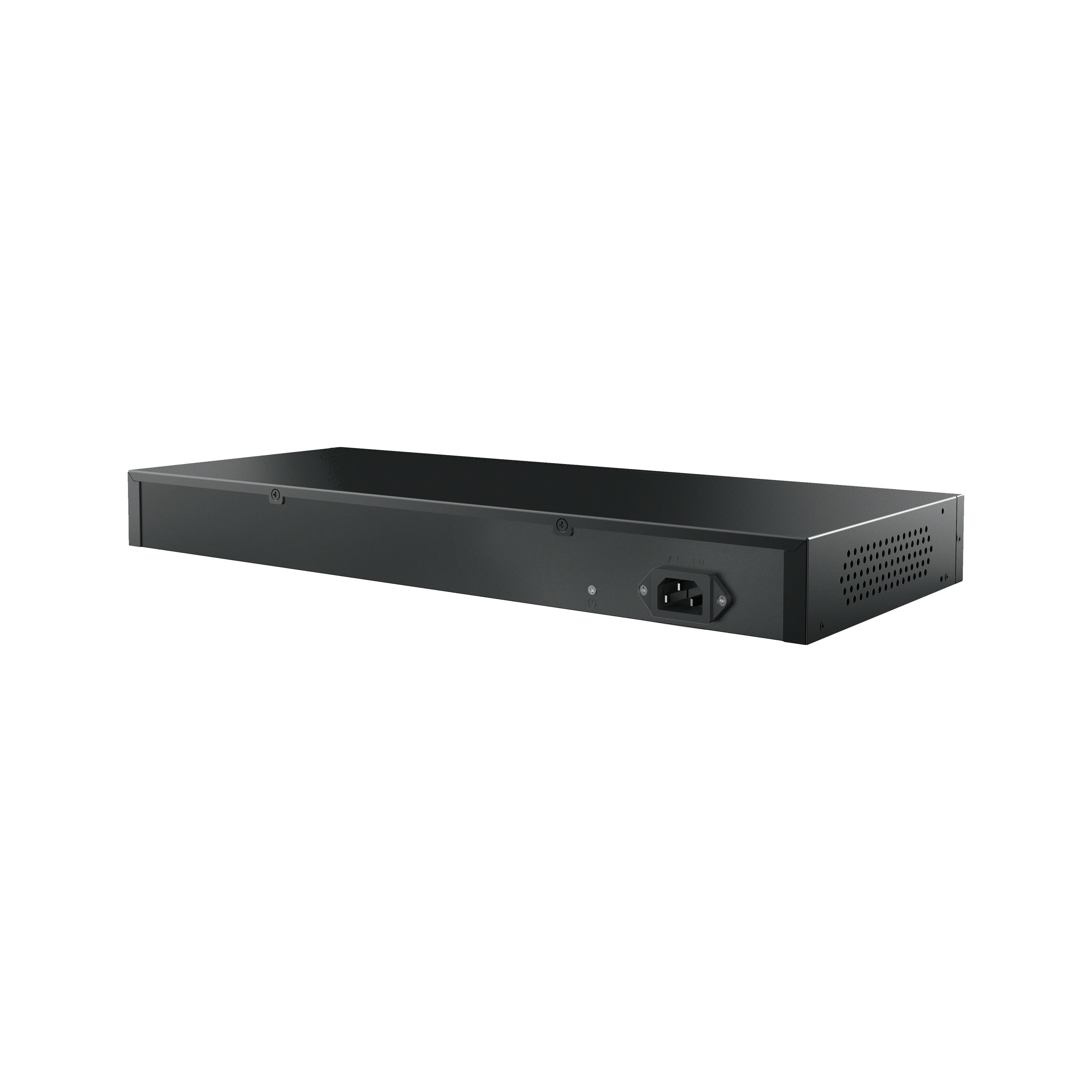

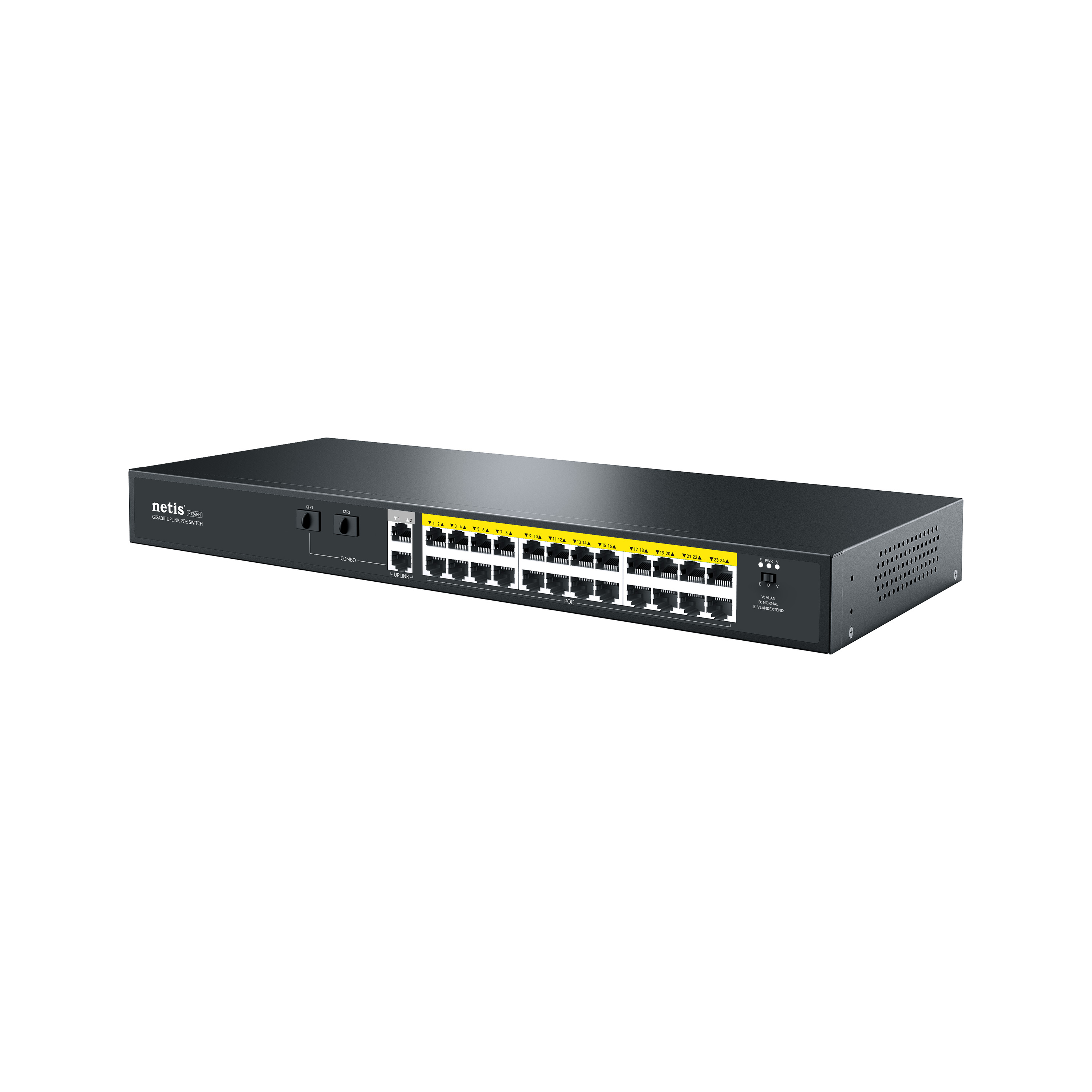

P124GH | 24FE POE+2GE Uplink POE Switch

P124GH

24FE POE+2GE Uplink POE Switch

Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol
POE IEEE 802.3af/at compliant Powered Device (PD)
Ports 1~24 features POE power supply capability and can be used as power over Ethernet devices；2*10/100/1000Base-T Uplink and 2*1000Base-X SFP. SFP1, LAN1, SFP2, LAN2 are photoelectric multiplexing ports
Support full duplex based on IEEE802.3x and half duplex based on Backpressure
Auto MDI/MDIX crossover for all ports
Non-blocking wire speed forwarding
MAC address auto-learning & auto-aging
Steel case, the total POE power budget of 360W
Just Plug and Play

Overview | Specifications | Download

Specification

Hardware

Interface	24 * 10/100M POE ports (Data /Power) 1 * 10/100/1000M RJ45 ports (Data) 1 * 1000M uplink SFP Slot(Data) 1 * Combo 100/1000Mbps SFP Slot(Data)
Power Input POE Standards	Single port maximum power 30W, Whole switch maximum power 360W Support over-current, over-voltage and short-circuit protection Support Soft Start of High Power PD Support sequential boot-up Power Supply Pin:12+/36- AC 100~240V 50-60HZ
LED	PWR: Lighting - The device is powered on normally E: Lighting - The VLAN+EXTEND mode is enabled V:Lighting - The VLAN mode is enabled Port: Lighting - Port link is normal Blinking - Data in transit
Store & Forwarding	Yes
Switching Capacity	12.8G
MAC Address Table Size	16K
Jumbo Frame	2048 byte
Mode	VLAN Mode Normal Mode VLAN + EXTEND Mode

Software

Data Transfer Rate	10Mbps(Half-duplex and Full-duplex) 100Mbps(Half-duplex and Full-duplex) 1000Mbps(Full-duplex)
Basic function	Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol Support POE IEEE 802. 3af/at compliant Powered Device (PD) Store-and-forward switching scheme Support IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging Photoelectric multiplexing ports
Standards	IEEE 802.3/i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control
Cabling type	1000BASE-T : Cat5e or better UTP(≤100m) 100Base-TX: Cat 5e or better UTP/STP(≤100m) 10Base-TX: Cat 5e or better UTP/STP(≤250m)

Others

Environment	Operation Temperature：0℃～40℃ Storage Temperature：-40℃～70℃ Operation Humidity：10%～90% RH Non-condensing Storage Humidity：5%～90% RH Non-condensing
Dimensions	44018045mm(L * W * H )
